Window Cleaning Operate Elevated Work Platforms , 8 Meter Height Vertical Mast

Brand Name : SIVGE
Model Number : GTWR8-1008G
Certification : CE/ISO9001/ISO14001/OHSAS18001
Place of Origin : China
MOQ : 1 unit
Price : negotiation
Payment Terms : L/C, T/T, D/P
Supply Ability : 100 units per month
Delivery Time : 7-30 working days
Packaging Details : 10 units per 20GP with steel pallets; plywood case for LCL
Product Name : hydraulic lift platform
Application : Window cleaning
Max. platform height : 7.6 meter
Max.working height : 9.6 meter
Rated load/capacity : 136kg
Number of persons allowed : 1 person
Size of platform : 630*650mm
Stowed dimension : 1330*730*1970mm
Standard : CE/TUV/SGS
Move method : Manual push around
Contact Now

10 meter working height easy loading single man lift for long distance transportation

Occasions suitable to use this machine:

Using purpose:

Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.

Places may in need of this kind of machine:

Office buildings, shopping centers, theatres, hospitals, warehouses, factories, museums, auditoriums, hotels, gymnasium, business/convention center, airports, auto stations and highway toll station etc.

Specifications of

10 meter working height easy loading single man lift for long distance transportation

Platform height(m)67.6
Working height (m)89.6
Platform size(mm)650*630650*630
Outrigger footprint(mm)2410*20002410*2000
Stowed length(mm)13301330
Stowed width(mm)730730
Stowed height(mm)17401970

Machine weight(kg)

(for reference)

Power supplyAC220VAC220V
Power input(kw)0.750.75
Moving methodsManual push typeManual push type
Front wheel5inch5inch
Rear wheel10inch10inch
Available truck deck height500-700mm500-700mm
Max. allowed wind speed12.5m/s12.5m/s
Rated oil pressure12Mpa12Mpa
Battery as power sourceDC12V/ 0.7KwDC12V/ 0.7Kw
Integrated charger

Output 12V/15A

AC220V/AC110V input

Output 12V/15A

AC220V/AC110V input

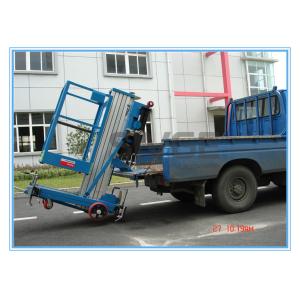

Photos as below;

Product features

  • Dual controls operation
  • Compact design with easy quick guardrail assemblage
  • Emergency stop buttons at both controls
  • Emergency lowering device in case of power supply failure
  • 24V safe control voltage
  • Overload limit
  • Double safety protection with leveling stabilizers and outriggers support
  • Forklift pocket
  • No-marking wheels
  • Low maintenance requirements will save you time and money.
  • Conform to EN 280:2013

Safe & Stable

User's safety is the basic concern point of SIVGE.

Professional & Innovative

The only thing SIVGE technical team has done in the past 20 years is research on the aerial work platforms, especially mast platforms. Each SIVGE innovation is the effort of our employees. We obtain dozens of patents and utilize these patents in our products.

SIVGE is focus on portable mobile elevating work platforms, lifting mechanism synchronization, outriggers rationality, machine stability, operator comfort, and control of advanced, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.

Sivge is the drafter for a number of national standards, equipped with High-tech R&D center. National key scientific and technological support projects industrial base.

Our Services

Service is the extension of quality

With outstanding quality and loyal service to pursue the most satisfaction of customers.

Pre-sale Services:

· To provide users with pre-sales technical support, and provide users with a personalized selection or design recommendations based on the actual site's needs.

· User jointly develop applied to industry-specific special purpose machinery.

Sale of services:

· In accordance with the order or user requirements, coordination of stocking or production cycle.

· Provide a detailed production schedule or project plan to the user.

After-sale Service:

· To provide a lifetime goods services for all Sivge equipments, included equipment maintenance, spare parts supply, provide manuals and video,etc.

· To provide remote service support by phone and network freely.

Other Services:

· Services for product upgrade or remanufacturing.

· To provide more services about Aerial Work Machinery and related industries, such as design, sourcing, rental, etc.
